Forging remains a critical manufacturing process for high-strength components used in industries such as automotive, aerospace, and heavy machinery. Two key quality parameters in forging are dimensional tolerance and surface finish—both directly impacting performance, assembly, and post-processing.
What Is Forging Tolerance?
Forging tolerance refers to the allowable variation in the dimensions of a forged component compared to its intended design specifications. In simpler terms, it defines how closely the final forged product matches the shape and size outlined in the technical drawing. These tolerances are essential for ensuring that forged parts meet functional requirements without the need for excessive post-processing.
Several factors influence forging tolerances, with the chosen forging method playing a significant role. For example, open die forging typically results in looser tolerances due to the less constrained shaping process, while closed die forging allows for much tighter control over the final geometry. The material being forged, the complexity of the part, and the temperature at which forging is performed also contribute to the achievable tolerance levels.
It is important to note that forging generally offers lower precision compared to machining. However, the tolerances achieved through forging are often adequate for a wide range of industrial applications, particularly where high strength and durability are more critical than extremely tight dimensional accuracy.
For applications requiring more exact dimensions, tighter tolerances can be achieved, but this demands higher-quality tooling, more precise dies, and stringent control of the forging process. These enhancements can increase production costs, so a careful balance must be struck between performance requirements and manufacturing efficiency.
Standard Tolerance Classes:
| Forging Type | Typical Tolerance Range |
|---|---|
| Open-Die Forging | ±1.5 mm to ±5 mm |
| Closed-Die Forging | ±0.5 mm to ±2 mm |
| Precision Forging | ±0.1 mm to ±0.5 mm |

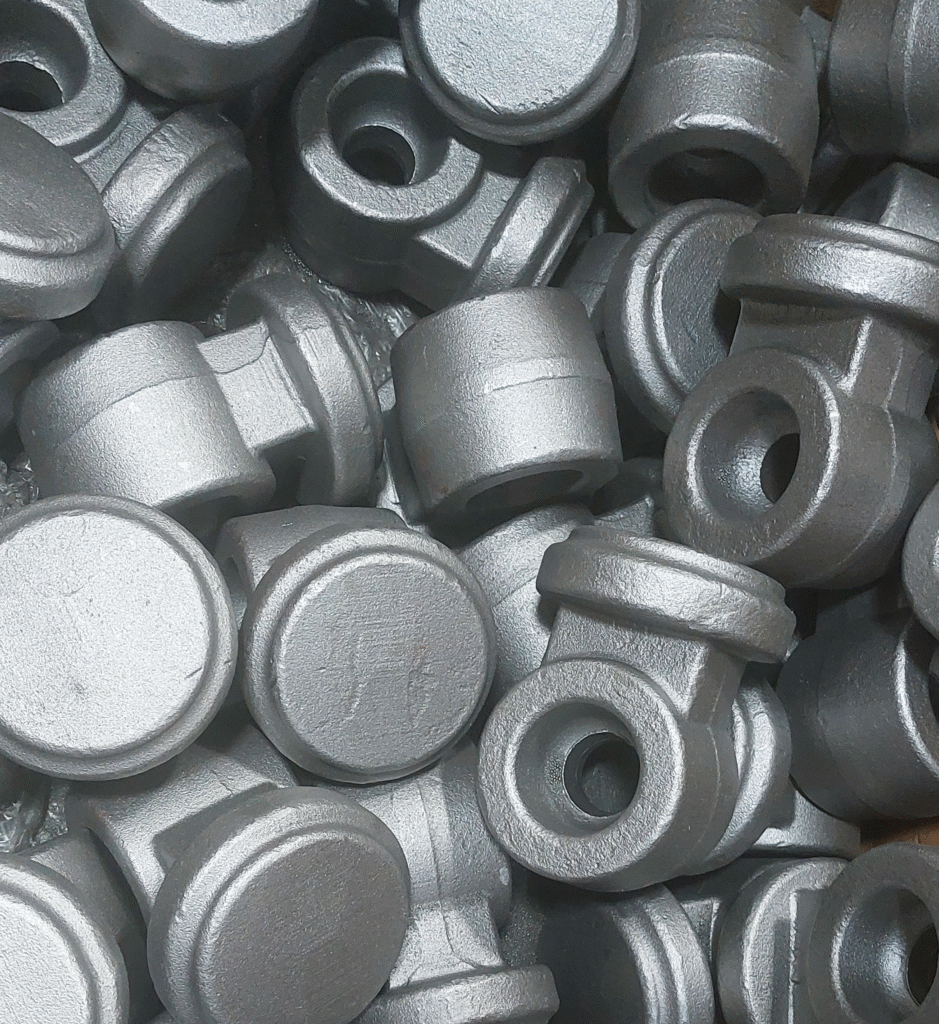

What Is Surface Finish in Forging?
Surface finish, also known as surface roughness, refers to the texture and smoothness of a forged part’s surface after it has been shaped. This characteristic plays a vital role in the performance, durability, and post-processing requirements of the final component.
A well-controlled surface finish can significantly impact several functional aspects of a part:
Friction: A smoother surface reduces friction between moving parts, enhancing efficiency.
Wear Resistance: Uniform and refined surfaces are less prone to wear over time, extending component life.
Fatigue Resistance: Minimizing surface imperfections helps prevent stress concentrations, improving the part’s resistance to fatigue failures.
Machining Needs: A better initial surface finish can reduce or eliminate the need for extensive post-forging machining, saving time and cost.
Surface Roughness (Ra)
Surface roughness is typically measured as Ra (Roughness Average) in micrometers (µm) or microinches.
Lower Ra values indicate a smoother surface.
For example, a Ra of 0.8 µm is smoother than a Ra of 3.2 µm.Desired Ra values depend on the application, forging method, and material type.
Influencing Factors
Die Surface Quality: Smoother dies produce better surface finishes.
Lubrication: Proper lubrication reduces friction and surface defects.
Forging Temperature: Optimal temperatures help achieve cleaner surfaces.
Material Flow: Uniform flow minimizes surface irregularities.
Scale Formation: Oxide scale can roughen the forged surface.
Relationship Between Tolerance and Surface Finish
When manufacturing parts with tighter tolerances, achieving a high-quality surface finish becomes critical. Here’s why:
Avoid Excessive Material Removal:
A rough or uneven surface on a forged part means more material must be removed during machining to meet dimensional requirements. This leads to longer machining times, increased tool wear, and higher costs.Impact of Poor Surface Finish:
If the surface finish is poor, the part often requires additional secondary processes such as:Grinding
Polishing
Other surface treatments
These extra steps add complexity, increase production time, and raise overall expenses.
How Precision Forging Helps
To overcome these challenges, precision forging techniques are used, offering several benefits:
Closer Tolerances:
Precision forging employs accurately machined dies and strict process controls to produce parts that closely match design dimensions right after forging.Smoother Surfaces:
Parts forged with precision techniques typically have better surface finishes, reducing the need for further machining or surface treatments.Cost and Time Savings:
By minimizing post-forging operations, manufacturers save both time and money, improving overall production efficiency.
Additional Benefits
Improved Mechanical Properties:
Precision forging enhances material flow and reduces surface defects, which can increase fatigue resistance and part strength.Better Quality Parts:
The combination of tight tolerances and superior surface finish results in higher-quality components that perform better and last longer.
Inspection and Quality Control
In manufacturing, ensuring that parts and components meet stringent design specifications and quality standards is fundamental. Compliance verification guarantees that products function as intended, are safe to use, and meet regulatory requirements. This involves carefully measuring dimensions, evaluating surface quality, and detecting any hidden defects. The most effective approach combines advanced measuring tools and testing techniques, including coordinate measuring machines (CMMs), profilometers, and non-destructive testing (NDT) methods.
Dimensional Verification: Coordinate Measuring Machines and Calipers
One of the primary ways to verify compliance is through dimensional inspection, which confirms that the manufactured part matches the precise measurements outlined in design documents.
Coordinate Measuring Machines (CMMs):
CMMs are highly accurate devices used to measure the geometry of components in three dimensions. They operate by moving a probe along the surface of the part to record exact positions of critical points. CMMs are ideal for complex parts with intricate geometries, tight tolerances, and critical dimensions. The data collected by CMMs can be compared directly to CAD models or engineering drawings, ensuring the part adheres to design specifications. Their precision reduces human error and speeds up quality control processes.Calipers:
For less complex parts or quick checks, calipers are commonly used. These handheld tools measure linear dimensions such as length, width, diameter, and depth with good accuracy. Digital calipers provide easy-to-read measurements and can quickly assess whether parts fall within acceptable tolerance ranges during production or final inspection.
Surface Roughness Evaluation: Profilometers
Surface finish significantly impacts the performance, longevity, and aesthetics of manufactured parts. Uneven or rough surfaces can lead to increased friction, wear, and potential failure under stress. Therefore, assessing surface roughness is a crucial step in compliance.
Profilometers:
Profilometers measure the micro-scale texture of a part’s surface by scanning across it with a sensitive stylus or using optical methods. They quantify surface roughness using parameters like Ra (roughness average), which expresses the average deviation of surface peaks and valleys from a mean line. Ensuring the surface finish meets specified requirements is vital, especially for parts subject to friction or requiring tight sealing. A good surface finish can also reduce the need for additional machining or polishing.
Detecting Hidden Defects: Non-Destructive Testing (NDT)
Not all defects are visible or detectable through dimensional or surface inspections. Subsurface cracks, voids, inclusions, or internal corrosion can compromise a part’s strength and reliability. Non-destructive testing methods allow manufacturers to detect such flaws without damaging the part.
Common NDT Techniques Include:
Ultrasonic Testing: Uses high-frequency sound waves to detect internal flaws.
Radiography (X-ray): Visualizes internal structures to identify cracks or voids.
Magnetic Particle Inspection: Detects surface and near-surface defects in ferromagnetic materials.
Dye Penetrant Testing: Reveals surface cracks and porosity using special dyes.
Applying the appropriate NDT technique depends on the material, part geometry, and suspected defect types.
Conclusion: Optimizing for Performance and Cost
In forging, achieving the right balance between tolerances, surface finish, and manufacturing cost is critical. Forging tolerances refer to the permissible variations in a part’s dimensions, while surface finish describes the texture and smoothness of the forged surface. Optimizing both factors simultaneously impacts not only the part’s performance and durability but also the overall efficiency and cost-effectiveness of the manufacturing process.
The Balancing Act: Cost vs. Functionality vs. Manufacturability
Cost Considerations:
Tighter tolerances and finer surface finishes usually require more precise tooling, stricter process controls, and additional finishing operations like machining, grinding, or polishing. These measures can significantly increase production costs. Conversely, looser tolerances and rougher finishes reduce tooling and process complexity, lowering expenses but potentially compromising part quality or performance.Functionality Requirements:
Many forged parts must meet stringent functional criteria, such as load-bearing capacity, fatigue resistance, and fit within assemblies. Achieving these often requires precise dimensional control and smooth surface finishes to reduce stress concentrations and friction. However, not all applications demand ultra-tight tolerances or mirror-like surfaces, allowing manufacturers to adjust specifications according to actual use conditions.Manufacturability Constraints:
The complexity of a part’s geometry, material properties, and forging method also limit achievable tolerances and surface finishes. For example, open die forging typically results in looser tolerances and rougher surfaces than closed die forging due to less confinement during shaping. Manufacturing processes must be carefully selected and controlled to balance feasibility and specification requirements.
Technological Advances Enabling Optimization
Recent developments in forging technology are helping manufacturers better balance these competing factors:
Advanced Die Design:
Modern computer-aided design (CAD) and computer-aided manufacturing (CAM) tools enable the creation of highly precise, durable dies that maintain tighter tolerances over longer production runs. Improved die materials and coatings also reduce wear, ensuring consistent surface finish and dimensional accuracy.Computer Simulation:
Simulation software models the forging process virtually, predicting material flow, temperature distribution, and potential defects. This allows engineers to optimize process parameters before actual production, reducing trial-and-error, material waste, and costly rework.Process Control:
Real-time monitoring and control systems track forging parameters such as temperature, pressure, and force, ensuring the process stays within specified limits. Automation and feedback loops improve consistency, enabling tighter tolerances and better surface finishes without excessive manual intervention.
