Difference Between Laser Cutting vs. Waterjet Cutting
| Feature | Laser Cutting | Waterjet Cutting |
|---|---|---|
| Cutting Method | Thermal (laser beam melts or vaporizes material) | Mechanical (high-pressure water with/without abrasive) |
| Materials | Metals, plastics, wood, paper, fabrics (not ideal for thick or reflective metals) | Almost all materials: metal, glass, stone, ceramics, rubber, composites |
| Material Thickness | Up to ~25 mm (depends on laser power) | Up to 100+ mm (depending on material and machine) |
| Precision | High (~±0.1 mm), excellent for fine details | Moderate to high (~±0.2 mm), suitable for most applications |
| Heat Affected Zone | Yes (thermal distortion possible) | None (cold cutting method) |
| Edge Quality | Smooth, may have slight burn marks | Very smooth, clean edges without burns |
| Speed | Faster on thin materials | Slower, especially on thick or hard materials |
| Operating Cost | Lower (no abrasive, less water usage) | Higher (abrasive material, water, energy usage) |
| Maintenance | Optics and laser parts require regular care | Pump, nozzle, and abrasive delivery system require maintenance |
| Environment Safety | Fumes/gases may require ventilation (especially with plastics) | Minimal fumes; requires water and abrasive disposal |
| Best Use Cases | Metal fabrication, electronics, signage, intricate designs | Aerospace, stone/tile cutting, thick metals, heat-sensitive materials |
What is Laser Cutting?
Laser cutting is a non-contact manufacturing process that uses a focused beam of light (laser) to cut, melt, or vaporize material. It’s widely used in industrial, commercial, and even artistic applications due to its precision and ability to work with a variety of materials. Unlike mechanical cutting methods that rely on physical force, laser cutting uses thermal energy to create clean, highly accurate cuts.
The technology has evolved significantly since its inception in the 1960s, becoming a core process in modern fabrication, especially in industries like automotive, aerospace, electronics, and metalworking.
Working Principle of Laser Cutting
1. Generation of the Laser Beam
Laser cutting begins with the generation of a laser beam. This beam is produced in a laser resonator using different media:
CO₂ lasers: Use a gas mixture (mainly carbon dioxide) to produce the laser.
Fiber lasers: Use a solid gain medium and fiber optics to generate a highly focused and efficient beam.
Nd:YAG (Neodymium-doped Yttrium Aluminum Garnet): Suitable for very high-power applications.
2. Focusing the Laser Beam
The generated laser beam is directed through a series of mirrors or fiber optics to a focusing lens located in the laser head. This lens focuses the laser to a fine point—often as small as 0.1 mm in diameter—resulting in extremely high energy density.
3. Material Interaction
The concentrated laser beam strikes the material surface and heats it rapidly. Depending on the material and the power of the laser, one of the following processes occurs:
Melting: The material melts and is blown away by an assist gas (like nitrogen or argon).
Vaporization: The material vaporizes and is removed in the form of smoke.
Burning: In the presence of oxygen, combustible materials like wood or plastic can burn.
4. Cutting Path and Motion
The laser head is mounted on a CNC (Computer Numerical Control) system, which follows a programmed path to cut the material. The entire process is automated, allowing for high precision and repeatability.
Types of Laser Cutting Techniques
Fusion Cutting: Uses inert gases like nitrogen to blow molten material out of the cut zone.
Flame Cutting (Reactive Cutting): Uses oxygen to combust and remove the material, improving cutting speed.
Sublimation Cutting: Converts material directly from solid to gas (common in cutting plastics and textiles).
Materials Suitable for Laser Cutting
Laser cutting is compatible with a wide range of materials, including:
Metals: Steel, stainless steel, aluminum, brass, copper (with some limitations).
Plastics: Acrylic, polycarbonate (with caution), PVC (not recommended due to toxic fumes).
Wood: Plywood, MDF, hardwood.
Textiles: Felt, leather, synthetic fabrics.
Paper and Cardboard
Glass and Ceramics: Mostly for engraving due to brittleness.
Applications of Laser Cutting
Laser cutting is versatile and used across many industries:
1. Manufacturing and Fabrication
Sheet metal cutting for enclosures, brackets, and machine parts.
Production of automotive body parts and components.
2. Electronics
Cutting intricate circuits, enclosures, and delicate metal components in PCBs.
3. Aerospace
Creating lightweight components with complex geometries using high-strength materials.
4. Medical Devices
Manufacturing of surgical tools, implants, and intricate metal components with tight tolerances.
5. Signage and Advertising
Cutting acrylic letters, logos, and decorative elements for indoor and outdoor signs.
6. Architecture and Interior Design
Laser-cut panels, decorative screens, and customized furniture pieces.
7. Art and Fashion
Creating detailed patterns in textiles, leather, or paper for apparel and art installations.
Benefits of Laser Cutting
1. High Precision and Accuracy
Laser cutting offers unmatched precision, often within a tolerance of ±0.1 mm. This makes it ideal for intricate designs and parts requiring tight tolerances.
2. Excellent Edge Quality
The focused laser beam produces smooth, burr-free edges that usually require no further finishing, especially on thinner materials.
3. Speed and Efficiency
For thin materials, laser cutting is significantly faster than traditional cutting methods. Automation further enhances productivity in high-volume production.
4. Minimal Material Waste
The narrow kerf width and precise control reduce scrap and optimize material usage.
5. Non-Contact Process
Since the laser does not physically touch the material, there is minimal mechanical stress, reducing wear and tear on equipment and the risk of material deformation.
6. Versatile
A wide variety of materials can be processed without changing tools or setups, making laser cutting ideal for prototyping and short-run production.
7. Integration with CAD/CAM
Laser cutters can easily interpret digital files from CAD software, making them ideal for automated, digital manufacturing workflows.
Limitations of Laser Cutting
1. Thickness Limitations
While excellent for cutting thin and medium-thickness materials, laser cutters struggle with very thick materials—generally over 25 mm for metals—where other methods like plasma or waterjet may be more suitable.
2. Heat-Affected Zone (HAZ)
Though smaller than other thermal cutting methods, there is still some thermal impact. This can alter the structural or surface properties of heat-sensitive materials.
3. Limited on Reflective Materials
Highly reflective metals like copper and aluminum can reflect the laser beam back into the machine, risking damage. Special fiber lasers help mitigate this, but challenges remain.
4. High Initial Cost
Laser cutting machines, especially fiber lasers, are expensive to purchase and maintain. For small businesses, the investment may be significant.
5. Material Restrictions
Certain materials, such as PVC, release toxic chlorine gas when cut with a laser. Others, like polycarbonate, can discolor or burn. Safety and material compatibility must be carefully evaluated.
6. Fume and Gas Emissions
Cutting materials like plastic, rubber, or coated metals can generate hazardous fumes. Proper ventilation or filtration systems are necessary for a safe working environment.
Future Trends in Laser Cutting
Fiber Laser Adoption: Fiber lasers are increasingly replacing CO₂ lasers due to higher efficiency, lower maintenance, and better compatibility with reflective metals.
Automation & AI Integration: Smart laser cutting systems are being integrated with AI and vision systems for quality control and adaptive manufacturing.
Green Manufacturing: Efforts are underway to make laser cutting more energy-efficient and environmentally friendly by reducing energy consumption and waste.
Laser cutting is a powerful, versatile technology that has transformed modern manufacturing and design. Its ability to deliver precise, clean cuts across a wide range of materials makes it indispensable in industries ranging from aerospace to fashion.
While it has limitations—such as thickness restrictions and the need for proper safety measures—its benefits in precision, speed, and adaptability often outweigh the drawbacks. As technology continues to evolve, laser cutting is expected to become even more efficient, accessible, and integrated into automated production systems.
Whether you’re a manufacturer looking for scalable solutions or a designer seeking intricate detail, laser cutting offers a compelling blend of performance and flexibility.

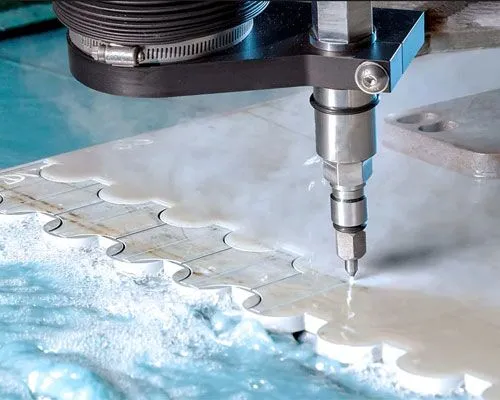

Waterjet Cutting
Waterjet cutting is a powerful and versatile material cutting technology that uses a high-pressure stream of water, often combined with abrasive particles, to cut through a wide variety of materials. As a cold-cutting process, it offers unique advantages over thermal methods such as laser or plasma cutting. Waterjet technology has found applications across industries like aerospace, automotive, architecture, and manufacturing due to its precision, versatility, and material compatibility.
This article explores the fundamentals of waterjet cutting—how it works, where it’s used, its benefits, and its limitations.
What is Waterjet Cutting?
Waterjet cutting is a mechanical cutting process that uses a high-velocity stream of water to erode and cut materials. When pure water is used, the process is ideal for soft materials like rubber, foam, and textiles. For harder materials like metals, ceramics, and glass, abrasive particles (usually garnet) are added to the water stream, enabling it to cut through extremely tough surfaces.
The process is entirely mechanical and does not rely on heat, which makes it distinct from laser and plasma cutting. This characteristic makes waterjet cutting ideal for materials sensitive to high temperatures or prone to warping or burning.
Working Principle of Waterjet Cutting
The waterjet cutting process is built on the principle of high-pressure erosion. Here’s a step-by-step explanation of how it works:
1. Pressurization
Water is pressurized using a high-pressure pump—typically generating pressures between 30,000 to 90,000 psi (pounds per square inch). This pressure is far beyond what typical water systems use, and it is essential for producing a focused, cutting-capable jet.
2. Conversion to Velocity
The pressurized water is forced through a small nozzle, converting pressure into kinetic energy. The nozzle can be as small as 0.1 mm in diameter, which accelerates the water to speeds of up to 3 times the speed of sound (Mach 3).
3. Abrasive Injection (for hard materials)
For cutting hard materials, abrasive particles (like garnet, aluminum oxide, or silicon carbide) are introduced into the water stream via a mixing chamber. The water and abrasive mix just before they exit the nozzle.
4. Material Erosion
As the high-velocity waterjet (with or without abrasives) strikes the surface, it erodes the material along the cutting path. The precision of this erosion allows for tight tolerances and smooth edges, even in materials that are otherwise difficult to machine.
5. CNC Control
The movement of the nozzle and the material being cut is typically managed by CNC (Computer Numerical Control) systems. These systems interpret CAD (Computer-Aided Design) files to perform precise, automated cuts.
Types of Waterjet Cutting
Pure Waterjet Cutting
Uses only water (no abrasives).
Suitable for soft materials: foam, rubber, textiles, paper, food.
Abrasive Waterjet Cutting
Adds abrasive particles to the stream.
Suitable for hard materials: metals, stone, glass, composites, ceramics.
Applications of Waterjet Cutting
Waterjet cutting is used in diverse sectors due to its precision and versatility. Key industries and applications include:
1. Aerospace
Cutting titanium and aluminum parts with tight tolerances.
Avoiding heat distortion in aircraft components.
Ideal for cutting carbon fiber and other composite materials.
2. Automotive
Prototype part manufacturing.
Cutting dashboard components, gaskets, and interior materials.
Cutting steel and aluminum body panels.
3. Architecture and Art
Decorative stone inlays and metal artworks.
Intricate floor patterns in tiles and marble.
Signage and architectural panels.
4. Manufacturing and Fabrication
Cutting tools, machine parts, and components.
Gasket production.
Custom metal fabrication.
5. Electronics
Cutting circuit boards and insulating materials.
High precision for small-scale, detailed work.
6. Medical Device Manufacturing
Producing surgical instruments.
Cutting specialized components from titanium or stainless steel.
7. Food Industry
- Slicing frozen products, fish, meats, and baked goods.
- Hygienic, clean cuts without contamination.
Benefits of Waterjet Cutting
Waterjet cutting offers a broad range of benefits that make it suitable for numerous industrial applications:
1. Cold Cutting Process
No heat-affected zone (HAZ).
Prevents material warping, burning, or melting.
Ideal for heat-sensitive materials like plastics and tempered glass.
2. Cuts Virtually Any Material
From soft rubber to hard steel and ceramics.
One of the few technologies capable of cutting layered or composite materials.
3. High Precision
Capable of tolerances as tight as ±0.1 mm.
Excellent for intricate shapes and detailed parts.
4. Clean, Smooth Edge Finish
Minimal burring or roughness.
Reduces or eliminates the need for secondary finishing.
5. Environmentally Friendly
No hazardous fumes or dust.
Water and abrasive are often recyclable.
No thermal emissions or pollution from cutting.
6. No Tool Wear
Unlike blades or drills, the nozzle doesn’t wear in the traditional sense, reducing maintenance downtime.
7. Versatile Setup
Easily programmable via CAD/CAM software.
Minimal setup time, especially for prototypes or one-off designs.
Limitations of Waterjet Cutting
Despite its versatility, waterjet cutting is not without drawbacks. Understanding these limitations is essential for proper application:
1. Slower Cutting Speeds
Compared to laser or plasma cutting, waterjet cutting is generally slower, especially for thick materials.
2. High Operational Costs
High water and electricity consumption.
Abrasive materials are consumables and must be replenished.
Pump and nozzle wear over time, leading to maintenance costs.
3. Large Equipment Footprint
Waterjet systems require considerable space due to the cutting bed, water collection tanks, and high-pressure pumps.
4. Material Thickness Limitations (for Precision)
While it can cut thick materials, precision decreases as thickness increases.
Deep cuts may also reduce edge quality due to jet divergence.
5. Wet Cutting Process
The process generates water spray and slurry, which may require drying or cleaning.
Not ideal for moisture-sensitive materials unless post-processing is applied.
6. Noise and Safety
High noise levels from the pressurized jet.
Safety precautions are necessary due to high-pressure risks.
7. Abrasive Disposal
Abrasive grit cannot always be reused and must be disposed of, often in accordance with environmental regulations.
Maintenance and Safety Considerations
Maintenance
Regular replacement of nozzles and focusing tubes.
Cleaning of abrasive collection tanks.
Monitoring of water filtration and pump seals.
Safety
Protective enclosures and shields to prevent injury from high-pressure jets.
Noise reduction equipment and hearing protection.
Proper training for operators due to complexity and potential hazards.
Future Developments in Waterjet Cutting
As industries demand higher precision, eco-friendly practices, and lower operational costs, waterjet technology continues to evolve. Key developments include:
Micro-waterjet cutting: For micro-manufacturing and small component fabrication.
Recycling abrasives: More sustainable systems are being developed to reuse spent abrasives.
Energy-efficient pumps: Lowering the energy footprint of high-pressure systems.
Hybrid cutting machines: Combining waterjet with other methods like laser for advanced capabilities.
Conclusion: Laser Cutting vs. Waterjet Cutting
When comparing Laser Cutting vs. Waterjet Cutting, it’s essential to understand the specific strengths and limitations of each method to choose the right one for your project.
Laser Cutting is ideal for high-precision, fast cutting of thin to moderately thick materials, particularly metals, plastics, and wood. This method uses a concentrated laser beam to melt or vaporize the material, allowing for extremely detailed and clean cuts. It is most effective for applications that require fine detailing, tight tolerances, and speed, such as in electronics manufacturing, signage, or intricate metal parts. However, laser cutting may not be suitable for very thick materials or those that are highly heat-sensitive, as the heat can cause warping or material degradation.
On the other hand, Waterjet Cutting is the preferred solution for cutting thick, dense, or heat-sensitive materials like stone, glass, rubber, ceramics, and composites. It operates through a high-pressure jet of water, often mixed with an abrasive substance, to erode the material rather than heat it. This cold cutting process eliminates any risk of heat distortion, making it ideal for applications where material integrity must be preserved. However, waterjet cutting typically comes with higher operational costs and slower cutting speeds, especially on detailed or complex shapes.
In the Laser Cutting vs. Waterjet Cutting debate, the best choice depends on your project’s specific needs:
Material type and thickness: Laser excels on thin metals and plastics, while waterjet handles thick and brittle materials.
Required precision and edge quality: Laser offers high precision; waterjet provides smooth edges without heat-affected zones.
Heat sensitivity of the material: Waterjet is superior for heat-sensitive materials.
Budget and production speed: Laser cutting is generally faster and more cost-effective for thin materials; waterjet cutting is more versatile but slower and more expensive.
Ultimately, both technologies are valuable in modern fabrication. By clearly understanding your application requirements, you can confidently choose between laser cutting vs. waterjet cutting for the best results.
