Forging is a manufacturing process where metal is shaped using compressive forces, usually delivered by a hammer or die. The choice of forging material depends on the desired mechanical properties, cost, and application. Here’s an overview of commonly used materials in forging and their typical applications:

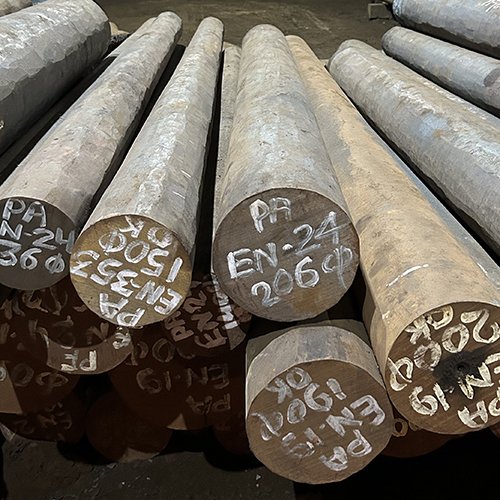

Materials used in Forging
Ferrous Metal
- Carbon Steels
- Alloy Steels
- Stainless Steels
- Tool Steel
- Cast Iron
Non-Ferrous Metal
- Aluminum Alloys
- Titanium Alloys
- Copper Alloys
- Magnesium Alloys
- Nickel Alloys
Superalloys
- Nickel Based Superalloys
- Cobalt-Based Superalloys
- Iron-Based Superalloys
Ferrous Metal
Ferrous metals are metals that contain iron (Fe) as their main element. They are known for their strength, durability, and magnetic properties, and they tend to rust or corrode when exposed to moisture (unless alloyed with other elements like chromium to resist corrosion, as in stainless steel).
Types of Ferrous Metal
- Carbon Steels
- Alloy Steels
- Stainless Steels
- Tool Steel
- Cast Iron
Carbon Steels
Carbon steel is one of the most commonly used types of steel. It is a ferrous metal made primarily from iron and carbon, with little to no other alloying elements. Its simplicity, strength, and cost-effectiveness make it a staple in construction, manufacturing, tools, and machinery.
Carbon steel is iron alloyed with carbon—typically up to 2.0% carbon by weight—and very small amounts of other elements (such as manganese, silicon, and copper). The carbon content directly affects the steel’s hardness, strength, ductility, and machinability.
Chemical Composition
| Element | Typical Range | Function |
|---|---|---|
| Iron (Fe) | Base element | Provides structure and toughness |
| Carbon (C) | 0.05% – 2.0% | Increases strength and hardness |
| Manganese (Mn) | 0.3% – 1.5% | Improves hardenability and strength |
| Silicon (Si) | 0.1% – 0.5% | Deoxidizer; improves strength |
| Sulfur (S) | ≤ 0.05% (impurity) | Can reduce ductility (adds machinability in free-machining steels) |
| Phosphorus (P) | ≤ 0.04% (impurity) | Increases strength but reduces ductility |
Properties of Carbon Steel
High Strength: Increases with carbon content; good for structural and mechanical parts.
Good Hardness: Wear-resistant, especially when heat-treated; high in high-carbon steel.
Ductility: High in low-carbon steel; decreases as carbon increases, making it more brittle.
Weldability: Excellent in low-carbon steel; reduced in high-carbon steel, needs special care.
Machinability: Good in low-carbon grades; harder to machine as carbon content increases.
Corrosion Resistance: Low; prone to rust, needs coating or galvanizing for protection.
Magnetic: All carbon steels are magnetic (ferromagnetic).
Moderate Thermal Conductivity: Suitable for heat transfer applications.
Cost-Effective: Affordable and widely used across industries.
Applications of Carbon Steel
Construction & Infrastructure : Beams, rebar, pipelines, structural frameworks
- Automotive : Body panels, chassis parts, axles, fasteners
- Mechanical Engineering : Shafts, gears, machinery components, dies
- Tools & Manufacturing : Cutting tools, hammers, knives (high-carbon types)
- Energy & Transportation : Oil pipelines, pressure vessels, shipbuilding
Why Carbon Steel is Popular in Forging
- Good Forgeability: Easily shaped when heated
- Cost-Effective: Relatively inexpensive compared to alloy steels
- Versatile: Can be heat-treated for various mechanical properties
- Wide Range of Applications: From simple hardware to high-strength tools
Common carbon Steel Grades Used in Forging
Low Carbon Steels:
1010 — Easy to forge, good ductility, used for bolts, nuts, and hardware
1020 — Better strength than 1010, used for shafts, gears, and forgings requiring moderate strength
Medium Carbon Steels:
1040 — Balanced strength and ductility, used in automotive parts, machinery components
1045 — Higher strength, often used for crankshafts, connecting rods, and other wear parts
High Carbon Steels:
1095 — High hardness and strength, used for cutting tools, springs, and knives
1080 — Good hardness and wear resistance, used for blades and springs
Alloy Steels
Alloy steels are steels that contain iron, carbon, and one or more additional alloying elements (such as chromium, nickel, molybdenum, vanadium, manganese, or silicon) added in specific amounts to enhance certain properties. These elements are intentionally included to improve characteristics like strength, hardness, toughness, corrosion resistance, wear resistance, and heat resistance, depending on the intended application.
Chemical Composition
| Element | Typical Content (%) | Function |
|---|---|---|
| Iron (Fe) | Balance | Base metal; provides structure and toughness |
| Carbon (C) | 0.05 – 1.0% | Increases strength and hardness |
| Chromium (Cr) | 0.5 – 12% (up to 27%) | Improves hardness, corrosion resistance, and wear resistance |
| Nickel (Ni) | 0.5 – 5% | Enhances toughness, corrosion resistance, and ductility |
| Manganese (Mn) | 0.3 – 2% | Improves hardenability, strength, and deoxidation |
| Molybdenum (Mo) | 0.1 – 1% | Increases strength at high temperatures, wear resistance |
| Vanadium (V) | 0.1 – 0.3% | Refines grain structure; improves strength and toughness |
| Silicon (Si) | 0.2 – 2% | Acts as a deoxidizer; improves strength and elasticity |
| Tungsten (W) | 1 – 3% | Provides heat resistance and hardness retention |
| Cobalt (Co) | 0.5 – 10% | Improves hot hardness and magnetic properties |
| Boron (B) | < 0.01% | Significantly improves hardenability in small amounts |
| Sulfur (S) | < 0.05% | Added to improve machinability (can reduce toughness) |
| Phosphorus (P) | < 0.04% | Increases strength but may reduce ductility |
Properties of Alloy Steel
- High Strength: Stronger than carbon steels due to added alloying elements like chromium, nickel, and molybdenum.
- Improved Hardness: Excellent wear resistance, especially after heat treatment; ideal for high-stress applications.
- Good Ductility & Toughness: Maintains strength while resisting cracking and impact; better than high-carbon steel.
- Enhanced Weldability: Varies by type—low-alloy steels usually weld well; high-alloy steels may need special procedures.
- Better Machinability: Can be tailored for good machinability; often better than high-carbon steel.
- High Corrosion Resistance: Especially in stainless and chromium-rich alloys; resists rust and chemical attack.
- High Heat Resistance: Performs well in high-temperature environments (e.g., turbines, engines).
- Magnetic (Usually): Most alloy steels are magnetic, but some (like austenitic stainless steel) are non-magnetic.
- More Expensive: Higher cost due to alloying elements and processing, but better performance in demanding uses.
Applications of Alloy Steel
- Automotive and aerospace components
- Pressure vessels and pipelines
- Power plants and turbines
- Tools, dies, and cutting equipment
- Stainless kitchenware (in case of high-alloy stainless steels)
Why Alloy Steel is Used in Forging
Higher Strength and Toughness: Better than plain carbon steels
Improved Wear and Fatigue Resistance: Longer life for critical components
Better Hardening Capability: Can be heat-treated to high hardness
Good Toughness at Elevated Temperatures: Suitable for hot forging
Common Alloy Steel Grades Used in Forging
- 4140: Chromium-molybdenum alloy, strong and tough, used for gears, shafts, and heavy-duty parts
- 4340: Nickel-chromium-molybdenum alloy, excellent toughness and fatigue resistance, used in aerospace and automotive components
- 8620: Nickel-chromium-molybdenum alloy, good hardenability, commonly used for carburized gears and shafts
- 6150: Chromium-vanadium alloy, used for springs and high-strength components
- 52100: High carbon-chromium alloy, used in bearings and tooling
- H13: Hot work tool steel, chromium-molybdenum-vanadium alloy, used for forging dies and molds
Stainless Steels
Stainless steel is a group of corrosion-resistant steel alloys that contain a minimum of about 10.5% chromium by mass. The chromium in the alloy forms a thin, stable oxide layer on the surface, known as the passive layer, which prevents further surface corrosion and protects the metal beneath from rust and staining.
Chemical Composition
| Element | Typical Content (%) | Function |
|---|---|---|
| Iron (Fe) | Balance | Base metal; provides strength and structure |
| Carbon (C) | ≤ 0.08% | Increases strength and hardness; kept low to improve corrosion resistance |
| Chromium (Cr) | 10.5 – 30% | Provides corrosion and oxidation resistance by forming a passive oxide layer |
| Nickel (Ni) | 8 – 20% | Enhances corrosion resistance, ductility, and toughness |
| Manganese (Mn) | 1 – 2% | Improves hot working properties and oxidation resistance |
| Molybdenum (Mo) | 2 – 3% (in some grades) | Improves pitting corrosion resistance and strength |
| Silicon (Si) | ≤ 1% | Acts as a deoxidizer; improves oxidation resistance |
| Nitrogen (N) | ≤ 0.1% | Enhances strength and corrosion resistance |
| Phosphorus (P) | ≤ 0.04% | Usually minimized to prevent brittleness |
| Sulfur (S) | ≤ 0.03% | Minimizes to reduce brittleness; sometimes added in free-machining grades for better machinability |
Properties of Stainless Steel
Corrosion Resistance:
Stainless steel resists rust, stains, and corrosion due to the protective chromium oxide layer on its surface. This makes it ideal for use in harsh or wet environments.Strength and Durability:
It has excellent mechanical strength and maintains toughness over a wide temperature range, making it suitable for structural and high-stress applications.Heat Resistance:
Many stainless steels retain their strength and resist oxidation at high temperatures, useful in engines, turbines, and heat exchangers.Aesthetic Appearance:
It has a bright, shiny finish that can be polished to a mirror-like surface, making it popular for decorative purposes.Hygiene:
Stainless steel’s smooth, non-porous surface prevents bacteria buildup, making it perfect for medical instruments, kitchens, and food processing.Ductility and Formability:
Stainless steel can be easily formed, welded, and machined, depending on the grade, which makes it versatile for manufacturing.Magnetic Properties:
Most stainless steels are either non-magnetic (austenitic grades) or slightly magnetic (ferritic and martensitic grades).Low Maintenance:
It requires little upkeep due to its corrosion resistance and durability, reducing long-term costs.
Applications of Stainless Steel
Kitchenware and cutlery
Medical instruments and implants
Architecture and construction (facades, handrails)
Chemical and food processing equipment
Automotive and aerospace components
Why Stainless Steel is Used in Forging
- Excellent corrosion resistance prevents rust and chemical damage
- Good strength and toughness for durable parts
- Maintains hardness and wear resistance at high temperatures
- Versatile for use in many industries (medical, aerospace, food, etc.)
- Hygienic and easy to clean for sanitary applications
- Resistant to cracking, ensuring reliability during forging and use
Common Stainless Steel Grades Used in Forging
- 304 and 316 (Austenitic): Excellent corrosion resistance, widely used in general applications
- 410 and 420 (Martensitic): Good hardness and wear resistance, used for cutlery and tooling
- 17-4 PH (Precipitation Hardening): High strength and corrosion resistance, used in aerospace and medical parts
Tool Steels
Tool steel is a special category of steel specifically designed to make tools. It is characterized by its high hardness, wear resistance, and ability to retain a sharp cutting edge even at elevated temperatures. These properties make tool steel ideal for manufacturing cutting, shaping, and forming tools used in machining, manufacturing, and metalworking.
Chemical Composition
| Element | Typical Content (%) | Function |
|---|---|---|
| Carbon (C) | 0.5 – 2.0% | Provides hardness and wear resistance |
| Chromium (Cr) | 0.5 – 5.0% | Improves hardness, wear resistance, and corrosion resistance |
| Tungsten (W) | 1.0 – 18.0% | Increases hardness and heat resistance |
| Molybdenum (Mo) | 0.5 – 5.0% | Enhances toughness and heat resistance |
| Vanadium (V) | 0.1 – 5.0% | Refines grain structure; increases wear resistance |
| Cobalt (Co) | 1.0 – 10.0% | Improves hot hardness and strength |
| Manganese (Mn) | 0.2 – 1.0% | Improves toughness and hardenability |
| Silicon (Si) | 0.2 – 1.0% | Acts as a deoxidizer; improves strength |
| Iron (Fe) | Balance | Base metal |
Properties of Tool Steel
- High Hardness:
Tool steels maintain exceptional hardness, which allows them to cut, shape, or form other materials effectively without wearing down quickly. - Wear Resistance:
They resist abrasion and surface wear, extending the life of tools even under heavy use. - Heat Resistance:
Many tool steels retain their hardness and strength at elevated temperatures, making them suitable for high-speed cutting and hot working applications. - Toughness:
Tool steels have good impact resistance, enabling them to withstand shocks and sudden forces without cracking or breaking. - Dimensional Stability:
They maintain their shape and size during heat treatment and use, which is crucial for precision tools. - Good Machinability and Grindability:
Despite their hardness, tool steels can be machined, shaped, and sharpened with appropriate techniques. - Corrosion Resistance (varies):
Some tool steels contain chromium and other elements that provide moderate corrosion resistance, but generally, they are less resistant than stainless steels.
Applications of Tool Steel
- Cutting tools (e.g., drills, saw blades, knives)
- Dies and molds for shaping metal or plastic
- Punches and shear blades
- Machine parts subject to wear and tear
Why Tool Steel is Used in Forging
High Hardness and Strength:
Withstands high pressure and impact during forging operations.Excellent Wear Resistance:
Resists abrasion and deformation over repeated use, extending tool life.Good Heat Resistance:
Maintains hardness and strength at elevated temperatures, ideal for hot forging dies.Dimensional Stability:
Retains shape and size even after heat treatment and repeated thermal cycles.Toughness:
Can absorb impact and resist cracking under heavy forging loads.Customizable Properties:
Different tool steel grades can be tailored for hot, cold, or warm forging applications.
Common Tool Steel Grades Used in Forging
- H13:
Hot work tool steel; excellent thermal fatigue resistance and toughness — widely used for hot forging dies. - H11:
Similar to H13 with slightly lower chromium; good for hot extrusion and forging tools. - D2:
High carbon, high chromium cold work tool steel; used in cold forging applications where wear resistance is critical. - A2:
Air-hardening cold work tool steel; good toughness and dimensional stability, used in moderate-duty dies. - S7:
Shock-resistant tool steel; excellent impact strength, used in forging hammers and tools. - O1:
Oil-hardening tool steel; used in precision forging applications requiring good machinability.
Cast Iron
Cast iron is a group of iron-carbon alloys with a carbon content typically between 2% and 4%, along with varying amounts of silicon, manganese, and other elements. It is known for its excellent castability, meaning it melts easily and can be poured into molds to form complex shapes.
Cast iron in forging is generally not used as a raw material because cast iron’s high carbon content (2–4%) makes it brittle and difficult to deform plastically under forging conditions. Forging involves shaping metal by plastic deformation, usually at high temperatures, and requires the material to be ductile enough to be hammered or pressed without cracking.
Chemical Composition
| Element | Typical Content (%) | Function |
|---|---|---|
| Carbon (C) | 2.0 – 4.0% | Provides hardness and castability; influences brittleness |
| Silicon (Si) | 1.0 – 3.0% | Acts as a graphitizing agent; improves fluidity and strength |
| Manganese (Mn) | 0.3 – 1.0% | Combines with sulfur to reduce brittleness |
| Sulfur (S) | ≤ 0.1% | Usually minimized; high sulfur causes brittleness |
| Phosphorus (P) | ≤ 0.2% | Increases fluidity but can cause brittleness |
| Iron (Fe) | Balance | Base metal |
Properties of Cast Iron
High Compressive Strength:
Cast iron can withstand heavy loads and pressure without deformation, making it ideal for structural and heavy-duty applications.Brittleness:
Due to its high carbon content and microstructure, cast iron is relatively brittle and can fracture under tension or impact.Good Wear Resistance:
Cast iron resists abrasion and wear, which is why it’s used in applications like engine blocks and machinery parts.Excellent Castability:
It melts easily and fills molds well, allowing for the production of complex shapes with fine detail.Good Vibration Damping:
Cast iron absorbs vibrations effectively, reducing noise and wear in machinery bases and engine parts.Low Tensile Strength:
Compared to steel, cast iron has lower tensile strength, making it less suitable for applications requiring high tensile loads.Thermal Conductivity:
Cast iron has good heat retention and distribution properties, which is why it’s used in cookware.Corrosion Resistance:
Moderate resistance to corrosion; tends to rust if exposed to moisture without protection.
Applications of Cast Iron
Engine blocks and cylinder heads
Pipes and fittings
Machine bases and frames
Cookware (pots, pans)
Pump housings and valve bodies
Why It's Rarely Used
- Brittle Material:
Cast iron cracks easily under tensile or impact forces, which are common in forging. - Not Ductile:
It doesn’t deform plastically like steel does—so it can’t be shaped effectively under pressure. - Preferred for Casting, Not Forging:
Cast iron is optimized for casting, not for mechanical deformation like forging.
Non-Ferrous Metal
Non-ferrous metals are metals that do not contain significant amounts of iron. Unlike ferrous metals (which are mainly iron-based), non-ferrous metals are known for their resistance to rust and corrosion, lightweight, high conductivity, and non-magnetic properties.
Types of Non-Ferrous Metal
- Aluminum Alloys
- Titanium Alloys
- Copper Alloys
- Magnesium Alloys
- Nickel Alloys
Aluminum Alloys
Aluminum alloys are materials made by combining pure aluminum with other elements such as copper, magnesium, manganese, silicon, or zinc to improve its mechanical properties like strength, corrosion resistance, and workability. Because pure aluminum is soft and not very strong, alloying it makes it suitable for a wide range of industrial and commercial applications.
Chemical Composition
| Element | Typical Content (%) | Function |
|---|---|---|
| Aluminum (Al) | Balance (usually 90%+) | Base metal providing lightweight and corrosion resistance |
| Copper (Cu) | 1.0 – 6.0% | Increases strength and hardness; reduces corrosion resistance |
| Magnesium (Mg) | 0.2 – 6.0% | Enhances strength and corrosion resistance |
| Silicon (Si) | 0.2 – 13.0% | Improves castability and strength |
| Manganese (Mn) | 0.1 – 1.5% | Improves corrosion resistance and strength |
| Zinc (Zn) | 0.5 – 8.0% | Greatly increases strength; may reduce corrosion resistance |
| Iron (Fe) | ≤ 0.7% (impurity) | Usually present as an impurity |
| Titanium (Ti) | ≤ 0.2% | Refines grain structure, improves strength |
| Chromium (Cr) | ≤ 0.35% | Improves corrosion resistance and strength |
Properties of Aluminum Alloys
- Lightweight:
Aluminum alloys have a low density (about 2.7 g/cm³), making them much lighter than steel, which is crucial for applications where weight saving is important, such as aerospace and automotive. - High Strength-to-Weight Ratio:
Alloying aluminum significantly increases its strength while keeping it lightweight, providing excellent mechanical performance. - Corrosion Resistance:
Aluminum naturally forms a thin oxide layer on its surface that protects it from corrosion. Certain alloying elements like magnesium enhance this property further. - Good Thermal and Electrical Conductivity:
Aluminum alloys conduct heat and electricity well, making them ideal for electrical wiring and heat exchangers. - Excellent Machinability and Workability:
These alloys can be easily formed, machined, rolled, or extruded into various shapes without cracking or losing strength. - Non-Magnetic:
Aluminum alloys do not exhibit magnetic properties, useful in electronic and aerospace applications. - Good Reflectivity:
Aluminum alloys reflect light and heat efficiently, which is why they are used in lighting fixtures and thermal insulation. - Ductility and Toughness:
Aluminum alloys offer good ductility, allowing them to be stretched or bent without breaking. - Non-Toxic and Recyclable:
Aluminum is safe for use in food packaging and is highly recyclable, contributing to sustainability.
Applications of Aluminum Alloys
- Aerospace components
- Automotive parts
- Packaging (cans, foils)
- Construction materials (windows, doors)
- Electrical transmission lines
Why Aluminum Alloys is Used in Forging
Lightweight:
High strength-to-weight ratio makes them ideal for aerospace, automotive, and transport applications.Good Forgeability:
Easily deformed at relatively low temperatures, reducing energy and tool wear during forging.Corrosion Resistance:
Naturally forms a protective oxide layer, making it suitable for harsh environments.Excellent Strength and Toughness:
Especially in heat-treated grades (e.g., 6061, 7075), forged aluminum components offer great mechanical performance.High Thermal and Electrical Conductivity:
Suitable for heat sinks, connectors, and electrical applications.Recyclability:
Aluminum is 100% recyclable without loss of properties, supporting sustainable manufacturing.Good Surface Finish and Dimensional Accuracy:
Forging produces near-net-shape parts with smooth surfaces and tight tolerances.
Common Aluminum Alloys used in Forging
- 6061:
Heat-treatable aluminum alloy; good strength, corrosion resistance, and weldability — widely used in structural and automotive forgings. - 7075:
High-strength, heat-treatable alloy; excellent strength-to-weight ratio — commonly used in aerospace and high-performance components. - 2024:
Heat-treatable alloy with excellent fatigue resistance and good machinability — ideal for aircraft fittings and structural parts. - 5083:
Non-heat-treatable alloy; outstanding corrosion resistance and good weldability — used in marine and chemical environments. - 2011:
Highly machinable, heat-treatable aluminum alloy — suited for precision forged parts like connectors and fittings. - 4032:
Heat-treatable alloy with high wear resistance and strength — used in automotive engine parts and aerospace applications. - 7050:
High-strength, heat-treatable aluminum alloy with excellent corrosion and stress resistance — preferred in aerospace forgings.
Titanium Alloys
Titanium alloys are metals composed primarily of titanium mixed with other elements such as aluminum, vanadium, molybdenum, and iron to enhance their strength, corrosion resistance, and other mechanical properties. These alloys combine titanium’s natural advantages—like low density and excellent corrosion resistance—with improved strength and toughness, making them ideal for high-performance applications.
Chemical Composition
| Element | Typical Content (%) | Function |
|---|---|---|
| Titanium (Ti) | Balance (usually 85–99%) | Base metal providing low density and corrosion resistance |
| Aluminum (Al) | 5 – 6.5% | Increases strength and maintains lightweight |
| Vanadium (V) | 3 – 4% | Improves strength, toughness, and heat resistance |
| Molybdenum (Mo) | 0.5 – 4% | Enhances corrosion resistance and strength |
| Iron (Fe) | ≤ 0.3% | Adds strength but kept low to avoid brittleness |
| Oxygen (O) | ≤ 0.4% | Increases strength but too much reduces ductility |
| Other elements | Small amounts of nitrogen, carbon, etc. | Can improve various mechanical properties |
Properties of Titanium Alloys
High Strength-to-Weight Ratio:
Titanium alloys are as strong as steel but about 40% lighter.Excellent Corrosion Resistance:
Naturally forms a protective oxide layer, resisting many acids, seawater, and chlorine.Good Fatigue Resistance:
Can withstand cyclic stresses, ideal for aerospace and biomedical applications.Biocompatibility:
Non-toxic and compatible with the human body, making it great for implants.High Melting Point:
Around 1668°C (3034°F), suitable for high-temperature applications.Good Weldability and Fabricability:
Can be formed and welded, though care is needed due to reactivity at high temperatures.Low Thermal Conductivity:
Lower than steel or aluminum, important in heat-sensitive applications.
Applications of Titanium Alloys
Aerospace: Structural components, engine parts, landing gear due to strength and light weight.
Medical: Surgical implants like hip replacements, dental implants, and prosthetics because of biocompatibility.
Marine: Ship components and offshore equipment resistant to saltwater corrosion.
Automotive: High-performance parts in racing cars for weight reduction and strength.
Chemical Industry: Equipment exposed to corrosive environments, such as heat exchangers and reactors.
Why Titanium Alloys Are Used in Forging
- High Strength-to-Weight Ratio:
Titanium alloys are as strong as steel but nearly 45% lighter, making them ideal for aerospace and high-performance applications. - Excellent Corrosion Resistance:
Naturally forms a stable oxide layer that resists corrosion in harsh environments, including seawater and chemicals. - High Temperature Performance:
Retain strength and stability at elevated temperatures — suitable for jet engines and turbine components. - Biocompatibility:
Non-toxic and well-tolerated by the human body — widely used in medical implants and surgical tools. - Good Fatigue and Creep Resistance:
Withstand cyclic loading and long-term stress, important for critical structural components. - Forging Improves Grain Structure:
Forging refines the microstructure of titanium, enhancing mechanical properties and reliability.
Common Titanium Alloys used in Forging
- Ti-6Al-4V (Grade 5):
The most widely used titanium alloy; excellent strength, corrosion resistance, and high-temperature performance — ideal for aerospace, medical implants, and high-performance parts. - Ti-6Al-4V ELI (Grade 23):
Extra Low Interstitial version of Ti-6Al-4V; improved fracture toughness and biocompatibility — commonly used in surgical implants and biomedical devices. - Ti-3Al-2.5V (Grade 9):
Moderate strength, excellent corrosion resistance, and good formability — used in aerospace tubing, bicycle frames, and marine applications. - Ti Grade 2 (Commercially Pure):
Good corrosion resistance, formability, and weldability — used in chemical processing, heat exchangers, and medical equipment. - Ti Grade 4:
Strongest of the commercially pure grades; higher strength with good corrosion resistance — used in surgical hardware and industrial applications. - Ti-10V-2Fe-3Al:
High-strength, beta-phase alloy with good toughness and heat treatability — used in aerospace structural components.
Copper Alloys
Copper alloys are metals made primarily of copper mixed with other elements such as zinc, tin, nickel, or aluminum to improve their mechanical properties, corrosion resistance, and appearance. These alloys combine copper’s excellent electrical and thermal conductivity with enhanced strength, wear resistance, and corrosion protection, making them versatile for various industrial and decorative uses.
Chemical Composition
| Element | Typical Content (%) | Function |
|---|---|---|
| Copper (Cu) | 55 – 99% | Base metal providing excellent conductivity and corrosion resistance |
| Zinc (Zn) | 5 – 40% | Increases strength and hardness (in brass alloys) |
| Tin (Sn) | 5 – 10% | Improves corrosion resistance and wear (in bronze alloys) |
| Nickel (Ni) | 1 – 10% | Enhances strength, corrosion resistance, and color |
| Aluminum (Al) | 0.5 – 12% | Increases strength and corrosion resistance |
| Lead (Pb) | Up to 3% | Improves machinability |
| Other elements | Small amounts of iron, manganese, phosphorus | Modify specific mechanical or corrosion properties |
Properties of Copper Alloys
- Excellent Electrical and Thermal Conductivity:
Copper alloys retain high conductivity, ideal for electrical wiring and heat exchangers. - Good Corrosion Resistance:
Particularly in marine environments; certain alloys resist seawater corrosion. - High Ductility and Malleability:
Can be easily formed, bent, and shaped without cracking. - Good Strength and Wear Resistance:
Alloying improves hardness and durability compared to pure copper. - Antimicrobial Properties:
Copper and some alloys naturally inhibit the growth of bacteria, useful in medical and hygienic applications. - Attractive Appearance:
Many copper alloys have appealing colors and finishes, often used decoratively. - Good Machinability:
Especially leaded brasses and bronzes are easier to machine.
Applications of Copper Alloys
- Electrical Industry: Wiring, connectors, and circuit boards due to excellent conductivity.
- Plumbing and Heating: Pipes, fittings, and heat exchangers because of corrosion resistance and thermal conductivity.
- Marine Equipment: Propellers, ship fittings, and pumps for corrosion resistance in seawater.
- Architectural: Decorative elements, roofing, and statues for durability and appearance.
- Industrial: Bearings, bushings, and gears because of wear resistance and machinability.
- Medical: Surfaces and devices leveraging antimicrobial properties.
Why Copper Alloys Are Used in Forging
Excellent Electrical and Thermal Conductivity:
Ideal for electrical components, heat exchangers, and cooling systems.Good Corrosion Resistance:
Resist oxidation and many corrosive environments, suitable for marine and chemical applications.Good Ductility and Malleability:
Easily forged into complex shapes without cracking.High Wear Resistance (in some alloys):
Certain copper alloys (like beryllium copper) offer excellent hardness and fatigue resistance.Non-Magnetic:
Useful in applications where magnetic interference must be minimized.Antimicrobial Properties:
Copper surfaces naturally inhibit bacterial growth — important in medical and food industry parts.
Common Copper Alloys used in forging
- C101 (Electrolytic Tough Pitch Copper):
High electrical and thermal conductivity; used in electrical connectors and busbars. - C11000 (Oxygen-Free Copper):
Excellent conductivity and ductility; ideal for electronic and electrical applications. - C17200 (Beryllium Copper):
High strength and hardness combined with good conductivity; used for springs, tools, and wear-resistant parts. - C70600 (Copper-Nickel 90/10):
Excellent corrosion resistance in seawater; used in marine hardware and desalination equipment. - C23000 (Phosphor Bronze):
Good strength, wear resistance, and corrosion resistance; used in bearings, bushings, and springs. - C26000 (Cartridge Brass):
Good ductility and strength; commonly used for plumbing fittings, valves, and gears.
Magnesium Alloys
Magnesium alloys are lightweight metals made primarily of magnesium combined with other elements such as aluminum, zinc, manganese, or rare earth metals. These alloys are prized for their extremely low density, good strength-to-weight ratio, and excellent machinability, making them highly valuable in industries where weight reduction is critical.
Chemical Composition
| Element | Typical Content (%) | Function |
|---|---|---|
| Magnesium (Mg) | Balance (usually 85–99%) | Base metal providing lightweight and strength |
| Aluminum (Al) | 1 – 9% | Increases strength, hardness, and corrosion resistance |
| Zinc (Zn) | 0.5 – 6% | Improves strength and hardness |
| Manganese (Mn) | 0.1 – 1% | Enhances corrosion resistance |
| Rare Earth Metals (e.g., Cerium, Yttrium) | Small amounts (up to ~2%) | Improves high-temperature performance and strength |
| Zirconium (Zr) | Up to 0.5% | Grain refinement and improved strength |
| Other elements | Small traces of silicon, calcium, iron | Various mechanical and corrosion resistance improvements |
Properties of Magnesium Alloys
Extremely Lightweight:
Magnesium alloys have one of the lowest densities among structural metals (~1.7–1.9 g/cm³), making them ideal for weight-sensitive applications.Good Strength-to-Weight Ratio:
Despite their low weight, magnesium alloys offer good mechanical strength.Excellent Machinability:
Easily machined compared to many other metals, reducing manufacturing costs.Good Vibration Damping:
Effective at absorbing vibrations, useful in automotive and aerospace components.Moderate Corrosion Resistance:
Generally less corrosion resistant than aluminum alloys but improved by alloying and surface treatments.Good Thermal Conductivity:
Useful for heat dissipation in electronic and automotive parts.Relatively Low Melting Point:
Around 650°C (1200°F), allowing for easy casting and forming.
Applications of Magnesium Alloys
Automotive Industry: Engine blocks, transmission cases, and interior parts to reduce vehicle weight and improve fuel efficiency.
Aerospace: Structural components and aircraft interiors where lightweight materials are essential.
Electronics: Casings and frames for laptops, cameras, and mobile devices due to lightness and strength.
Sporting Goods: Bicycle frames, golf clubs, and other lightweight equipment.
Medical Devices: Components requiring lightweight and good mechanical properties.
Why Magnesium Alloys Are Used in Forging
- Ultra-Lightweight:
Magnesium is one of the lightest structural metals, making its alloys ideal for forging weight-sensitive applications like aerospace and automotive parts. - Good Strength-to-Weight Ratio:
Forged magnesium alloys provide good mechanical strength while keeping weight minimal, making forging an excellent process for these alloys. - Excellent Machinability:
Forged magnesium parts are easier to machine than many other metals, which reduces manufacturing costs after forging. - Good Damping Capacity:
Forging magnesium alloys produces components that absorb vibrations well, beneficial in automotive and electronics applications. - Good Corrosion Resistance (with proper alloying and coatings):
Modern forged magnesium alloys have improved corrosion resistance suitable for many environments. - Energy-Efficient Forging:
Magnesium’s low melting point and good forgeability make forging an energy-efficient manufacturing process.
Common Magnesium Alloys used in forging
- AZ31:
Aluminum-zinc alloy; good strength, excellent corrosion resistance, and easy to forge — widely used in automotive and aerospace components. - AZ61:
Higher aluminum content than AZ31; offers improved strength and creep resistance — suitable for structural parts. - AZ91:
One of the most common magnesium alloys; high strength and good corrosion resistance — used in aerospace, automotive, and electronics. - WE43:
Rare-earth alloy with excellent high-temperature strength and corrosion resistance — used in aerospace and high-performance applications. - ZK60:
Zinc and zirconium alloy; very high strength and good fatigue resistance — ideal for aerospace and sporting goods.
Nickel Alloys
Nickel alloys are a group of metals made primarily of nickel, combined with elements like chromium, iron, molybdenum, copper, and cobalt to improve mechanical strength, corrosion resistance, and heat resistance. These alloys are known for their superior performance in extreme environments, especially high temperatures and corrosive conditions.
Chemical Composition
| Element | Typical Content (%) | Function |
|---|---|---|
| Nickel (Ni) | 50 – 80% | Base metal; provides strength, corrosion, and heat resistance |
| Chromium (Cr) | 10 – 30% | Enhances oxidation and corrosion resistance |
| Iron (Fe) | 0 – 45% | Improves mechanical properties and reduces cost |
| Molybdenum (Mo) | 2 – 12% | Improves strength and corrosion resistance in acids |
| Copper (Cu) | 1 – 30% | Enhances resistance to reducing acids (e.g., in Monel) |
| Cobalt (Co) | 0 – 20% | Adds strength at high temperatures |
| Aluminum (Al) | 0.1 – 2% | Strengthens the alloy (precipitation hardening) |
| Titanium (Ti) | 0.1 – 2% | Increases strength and fatigue resistance |
| Carbon (C) | ≤ 0.1% | Controlled to avoid brittleness |
Properties of Nickel Alloys
- Excellent Corrosion Resistance:
Resist a wide range of corrosive environments—acids, alkalis, and seawater. - High Temperature Strength:
Maintain strength and stability even at temperatures above 1000°C, making them ideal for furnaces and jet engines. - Oxidation Resistance:
Form stable oxide layers that protect the material at high temperatures. - Toughness and Ductility:
Remain tough and workable across a wide temperature range. - Non-Magnetic (some grades):
Useful in sensitive electronic and magnetic environments. - Good Weldability and Formability:
Can be easily fabricated and welded with appropriate techniques. - Creep and Fatigue Resistance:
Withstand long-term stress and cyclic loading at high temperatures.
Applications of Nickel Alloys
- Aerospace: Turbine blades, engine components, and exhaust systems due to heat and fatigue resistance.
- Chemical Processing: Heat exchangers, reactors, and piping systems that handle corrosive chemicals.
- Marine: Ship propellers, pumps, and seawater desalination equipment for their corrosion resistance.
- Power Generation: Gas turbines, boiler components, and nuclear reactors.
- Oil & Gas Industry: Downhole tools, valves, and fittings used in high-pressure and corrosive environments.
- Medical Devices: Surgical instruments and implants requiring biocompatibility and strength.
Why Nickel Alloys Are Used in Forging
- Exceptional High-Temperature Strength:
Nickel alloys maintain mechanical strength and stability during forging and in extreme heat, making them ideal for forging turbine blades and jet engines. - Excellent Corrosion and Oxidation Resistance:
These alloys resist harsh chemical environments and oxidation during forging and service, which extends the life of forged components. - Good Toughness and Fatigue Resistance:
Nickel alloys withstand cyclic stresses and impacts experienced in forging processes and in use, critical for aerospace and power generation forged parts. - Good Fabricability and Forgeability:
They can be easily forged into complex shapes without losing strength or ductility, making forging an efficient manufacturing method. - Resistance to Creep:
Forged nickel alloys perform well under long-term stress at elevated temperatures, maintaining their structural integrity. - Versatile Applications:
Due to their durability, nickel alloys are used in forging components for aerospace, chemical processing, power plants, and marine industries.
Common Nickel Alloys used in forging
- Inconel 718:
Nickel-chromium alloy; excellent high-temperature strength and corrosion resistance — widely used in aerospace and power generation. - Inconel 625:
Nickel-based superalloy; outstanding corrosion resistance and good mechanical properties at high temperatures — used in chemical processing and marine applications. - Hastelloy C-276:
Nickel-molybdenum alloy; superior corrosion resistance in harsh chemical environments — ideal for chemical reactors and heat exchangers. - Monel 400:
Nickel-copper alloy; excellent corrosion resistance, especially in seawater — used in marine and chemical industries. - Nickel 200:
Commercially pure nickel; good ductility and corrosion resistance — used in electrical and chemical applications. - Waspaloy:
Nickel-based superalloy; excellent strength and creep resistance at elevated temperatures — commonly used in aerospace turbine engines.
Superalloys
Superalloys are a group of high-performance metallic materials engineered to maintain strength, stability, and resistance to degradation in extreme environments. Primarily based on nickel, cobalt, or iron, they are alloyed with elements such as chromium, molybdenum, aluminum, titanium, and rhenium to enhance mechanical strength, heat resistance, and corrosion resistance. These alloys are especially known for their exceptional performance at high temperatures, making them indispensable in aerospace, power generation, and other high-stress, high-heat applications.
Types of Superalloys
- Nickel Based Superalloys
- Cobalt-Based Superalloys
- Iron-Based Superalloys
Nickel Based Superalloys
Nickel-based superalloys are a class of high-performance alloys primarily composed of nickel (Ni), and engineered to deliver exceptional mechanical strength, oxidation resistance, and corrosion resistance at elevated temperatures—often exceeding 1000°C.
They are the most widely used type of superalloys, especially in aerospace and power generation industries, where materials must maintain integrity under extreme stress and heat.
Chemical Composition
| Element | Typical Range (wt%) | Function / Role |
|---|---|---|
| Nickel (Ni) | 50–70% | Base element; provides high-temperature strength and corrosion resistance |
| Chromium (Cr) | 10–25% | Enhances oxidation and corrosion resistance |
| Cobalt (Co) | 5–20% | Improves high-temperature strength and phase stability |
| Aluminum (Al) | 2–6% | Forms γ′ (gamma prime) phase for precipitation strengthening |
| Titanium (Ti) | 1–5% | Also contributes to γ′ strengthening |
| Molybdenum (Mo) | 1–10% | Solid solution strengthening; improves creep resistance |
| Tungsten (W) | 1–10% | Enhances creep and thermal strength |
| Rhenium (Re) | 1–6% | Creep resistance; slows diffusion at high temperatures |
| Tantalum (Ta) | 0.5–3% | Grain boundary strengthening |
| Hafnium (Hf) | 0.2–2% | Grain boundary and carbide strengthener |
| Carbon (C) | 0.05–0.15% | Carbide formation for grain boundary strength |
| Boron (B) | 0.005–0.05% | Enhances grain boundary cohesion |
| Zirconium (Zr) | 0.01–0.1% | Grain boundary strength |
| Niobium (Nb) | 0.5–5% (in some grades) | Strengthening and stability (important in Inconel 718) |
| Iron (Fe) | 0–10% | Sometimes present in commercial grades like Inconel |
Properties of Nickel Based Superalloys
- Excellent Corrosion Resistance:
Resist a wide range of corrosive environments including acids, alkalis, and high-temperature gases. - High Temperature Strength:
Maintain strength and mechanical stability even at temperatures above 1000°C, ideal for turbine engines and power plants. - Oxidation Resistance:
Form stable, protective oxide layers (such as Al₂O₃ and Cr₂O₃) that prevent further surface degradation at elevated temperatures. - Toughness and Ductility:
Remain tough and retain good ductility over a wide temperature range, helping prevent cracking under stress. - Creep Resistance:
Effectively withstand slow deformation under long-term high-temperature stress, ensuring durability in demanding environments. - Fatigue Resistance:
Resist damage from repeated thermal and mechanical cycling, crucial for components in jet engines and turbines. - Good Weldability:
Certain grades, like Inconel 718, can be welded and fabricated with proper techniques without significant loss of properties. - Thermal Stability:
Microstructure remains stable during prolonged exposure to high temperatures, preserving strength and resistance. - Wear Resistance:
Provide good surface hardness and resistance to wear under high-friction and high-temperature conditions. - Non-Magnetic (in some grades):
Useful in applications sensitive to magnetic interference, though this varies by alloy composition.
Applications of Nickel Based Superalloys
Jet engine turbine blades and disks
Gas turbines (industrial & power plants)
Rocket engines and exhaust systems
Nuclear reactors
Heat exchangers
Automotive turbochargers
Examples of Nickel Based Superalloys
Inconel 718
Waspaloy
Rene 41
Mar-M247
Nimonic alloys
Inconel 625
Hastelloy X
Udimet 700
Cobalt-Based Superalloys
Cobalt-based superalloys are a class of high-performance metal alloys where cobalt (Co) is the primary base element. They are engineered to deliver excellent strength, corrosion resistance, and oxidation resistance at high temperatures—typically up to around 1000°C.
Chemical Composition
| Element | Typical Range | Role / Function |
|---|---|---|
| Cobalt (Co) | 40–65% (base element) | Provides high-temperature strength and corrosion resistance |
| Chromium (Cr) | 15–30% | Improves oxidation and corrosion resistance |
| Nickel (Ni) | 5–20% | Solid solution strengthening and phase stability |
| Molybdenum (Mo) | 5–10% | Enhances creep resistance and solid solution strengthening |
| Tungsten (W) | 5–10% | Improves creep and thermal strength |
| Iron (Fe) | Trace to 10% | May be present to balance cost and properties |
| Carbon (C) | 0.1–0.5% | Forms carbides to strengthen grain boundaries |
| Aluminum (Al) | 0–1% | Can form protective oxide layers |
| Titanium (Ti) | 0–1% | May contribute to precipitation strengthening |
| Boron (B) | Trace | Improves grain boundary strength |
| Other elements (e.g., Zr, Nb, Ta) | Trace | Used for grain boundary and phase stability |
Properties of Cobalt-Based Superalloys
- Excellent Hot Corrosion Resistance:
Resist oxidation and corrosion in aggressive, high-temperature environments better than many nickel-based alloys. - High Temperature Strength:
Maintain good mechanical strength at temperatures up to around 1000°C, suitable for hot-section gas turbine components. - Oxidation Resistance:
Form protective oxide layers that shield the material during exposure to high heat and reactive gases. - Good Toughness and Ductility:
Retain toughness and some ductility even at elevated temperatures, reducing the risk of cracking. - Creep Resistance:
Offer strong resistance to creep deformation under long-term high-temperature stress. - Fatigue Resistance:
Perform well under cyclic mechanical and thermal loading conditions typical in turbine engines. - Wear and Abrasion Resistance:
Exhibit excellent surface hardness and durability, making them suitable for wear-prone parts. - Good Weldability:
Can be welded with proper procedures, though careful control is needed to avoid cracking. - Biocompatibility:
Some cobalt-based superalloys are biocompatible, making them useful for medical implants. - Magnetic Properties:
Generally magnetic, which may be a consideration in specific applications.
Applications of Cobalt-Based Superalloys
- Gas Turbine Components:
Used in hot-section parts like combustor liners, turbine blades, and vanes due to excellent hot corrosion and oxidation resistance. - Aerospace Industry:
Manufacture of jet engine parts that require strength and durability at elevated temperatures. - Medical Implants:
Biocompatible grades are widely used for orthopedic implants, dental prosthetics, and surgical tools. - Wear-Resistant Parts:
Ideal for components exposed to high wear and abrasion, such as cutting tools and valve seats. - Industrial Furnaces:
Used in parts exposed to aggressive atmospheres and cyclic heating, like furnace tubes and heat exchangers. - Nuclear Reactors:
Certain cobalt superalloys are employed in control rods and structural components due to radiation resistance.
Examples of Cobalt-Based Superalloys
Haynes 188
Stellite Alloys
L-605 (Ultimet)
MP35N
Hastelloy C
Iron-Based Superalloys
Iron-Based Superalloys are high-performance metal alloys primarily composed of iron, combined with elements like chromium, nickel, and molybdenum. They are designed to retain good mechanical strength, corrosion resistance, and oxidation resistance at elevated temperatures—typically up to around 900°C. These alloys are widely used in industrial applications where cost-effectiveness and moderate high-temperature performance are required.
Chemical Composition
| Element | Typical Range | Role / Function |
|---|---|---|
| Iron (Fe) | Balance (~60–70%) | Base metal providing structural strength |
| Chromium (Cr) | 15–30% | Enhances oxidation and corrosion resistance |
| Nickel (Ni) | 5–30% | Improves toughness, corrosion resistance |
| Molybdenum (Mo) | 0.5–5% | Increases strength and corrosion resistance |
| Carbon (C) | 0.05–0.2% | Forms carbides for grain boundary strengthening |
| Copper (Cu) | 0–2% | Improves corrosion resistance |
| Nitrogen (N) | 0–0.2% | Enhances strength and corrosion resistance |
| Manganese (Mn) | 0–2% | Deoxidizer and improves hot working properties |
| Silicon (Si) | 0–1% | Deoxidizer and oxidation resistance |
Properties of Iron-Based Superalloys
- Good Corrosion Resistance:
Resist oxidation and corrosion in many industrial environments, including acidic and oxidizing atmospheres. - High Temperature Strength:
Maintain mechanical strength and stability at temperatures typically up to 900°C. - Oxidation Resistance:
Form protective oxide layers that prevent rapid surface degradation at elevated temperatures. - Thermal Stability:
Microstructure remains stable during long-term exposure to moderate high temperatures. - Good Fabricability:
Can be easily formed, welded, and machined compared to some nickel-based superalloys. - Moderate Creep Resistance:
Resist slow deformation under stress at elevated temperatures, though less than nickel-based alloys. - Fatigue Resistance:
Perform adequately under cyclic thermal and mechanical loading conditions. - Cost-Effective:
Generally more economical than nickel- or cobalt-based superalloys, making them suitable for large-scale industrial use.
Applications of Iron-Based Superalloys
Furnace Components:
Used for tubes, trays, and fixtures in industrial furnaces due to good oxidation and corrosion resistance at moderate high temperatures.Chemical Processing Equipment:
Ideal for heat exchangers, reactors, and piping that handle corrosive chemicals and high temperatures.Power Generation:
Used in boilers, heat exchangers, and steam turbine components where temperatures are moderate.Petrochemical Industry:
Employed in refining equipment exposed to harsh chemical environments and elevated temperatures.Automotive Exhaust Systems:
Used in components like catalytic converters and exhaust manifolds that require heat and corrosion resistance.Cryogenic and High-Temperature Applications:
Some grades are also used where a combination of heat and corrosion resistance is needed.
Examples of Iron-Based Superalloys
- Incoloy 800
- Incoloy 825
- Inconel 601
- Alloy 802
- HR-120
- Alloy 617
